Perforated Type

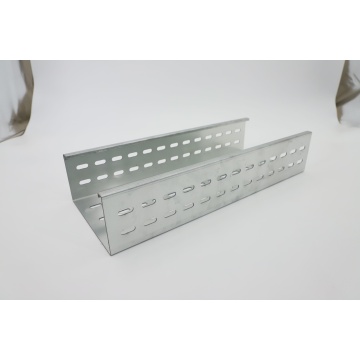

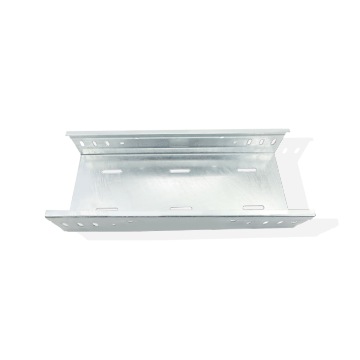

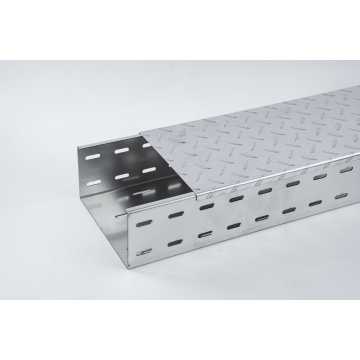

Perforated Type cable tray: The Ventilated Workhorse of Cable Management Systems

Classification: Structural Cable Support System / Industrial Cable Tray
Material: Typically fabricated from pre-galvanized steel, stainless steel, or aluminum.
Primary Design Feature: Characterized by a solid base and side rails with strategically punched ventilation holes.

Key Functional Attributes:

1. Optimized Ventilation:
   Perforations provide critical airflow around cables, reducing heat buildup and mitigating the risk of overheating in power-dense applications.

2. Reduced Weight & Material Use:
   The perforated design uses less material than solid-bottom trays, lowering weight and cost while maintaining structural integrity.

3. Enhanced Cable Visibility & Accessibility:
   Openings allow visual inspection of cables without removal and facilitate easier additions or modifications.

4. Debris Management:
   Smaller perforations prevent large debris accumulation while allowing dust and small particles to fall through, simplifying maintenance.

5. Versatile Support:
   Suitable for a wide range of cable types (power, control, telecom) and diameters. Ideal for horizontal runs, vertical risers, and under-floor applications.

Industry Standards Compliance:

Complies with major international standards including:

• NEMA VE 1 (Metal Cable Tray Systems)

• IEC 61537 (Cable Management - Cable Tray Systems and Cable Ladder Systems)

• UL 1569 (Metal Cable Tray Systems)

Typical Deployment Environments:

• Manufacturing Facilities & Industrial Plants

• Commercial Buildings (Offices, Hospitals, Retail)

• Data Centers & Server Rooms

• Power Distribution Rooms

• Telecommunications Infrastructure

• Transportation Hubs (Airports, Rail Stations)

Design Variations: Available in standard widths, depths, and perforation patterns (round, slot) to meet specific load ratings (Cable Tray Class) and ventilation requirements.

Core Advantage: Balances cable protection, thermal management, and cost-effectiveness for general-purpose installations requiring durability and compliance.

Key Terminology Rationale:

• "Perforated Type": Clearly distinguishes it from solid-bottom, wire mesh, or ladder-type trays.

• "Ventilated Workhorse": Highlights its defining feature (ventilation) and reliability in core applications.

• Classification Context: Explicitly states its category within cable management systems.

• Material Specification: Indicates common construction options relevant to classification.

• Functional Attributes: Focuses on why the perforated design exists and its core benefits.

• Standards: Essential for technical classification and specifying compliance scope.

• Deployment Environments: Classifies typical use cases.

• Design Variations: Notes key configurable parameters within this type.

• Core Advantage: Summarizes its primary role in the cable tray ecosystem.
